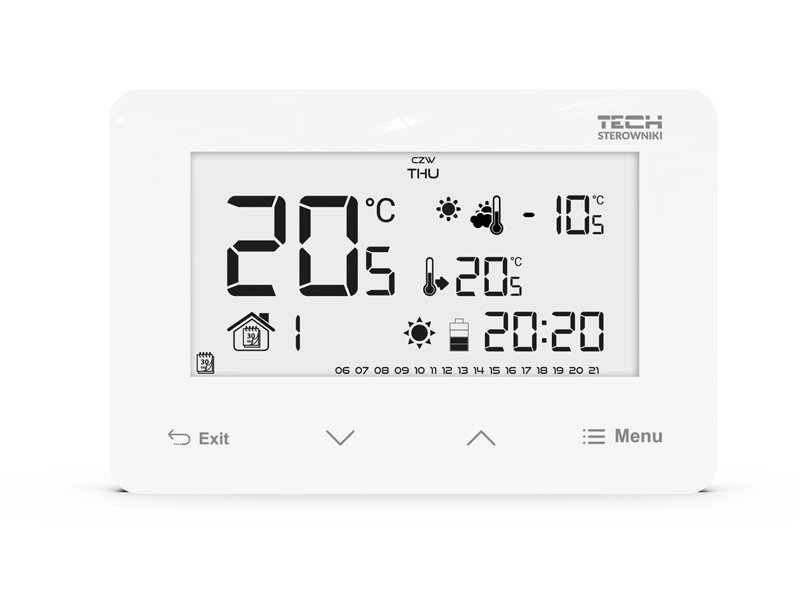

EU-293 v3

WIRED TWO-STATE ROOM REGULATOR (flush mounted)

Product description



Wired Two-State Room Regulator

(flush mounted)

Functions performed by the controller:

  • room temperature control +/- with an accuracy of 0.1 ° C
  • hysteresis in the range from 0.2 to 8 °C
  • weekly heating program
  • manual program
  • day / night program
  • temporary illumination of the display>
  • additional control based on floor temperature (if wired NTC floor sensor is used)
  • Optimum Start function
  • heating / cooling function
  • non-voltage No/Com/Nc relay (max. 1A/230V/AC)
  • wired communication

Controller equipment:

  • built-in room sensor
  • 2 x AA 1.5V batteries
  • flush mountable in a 60mm box


Dimension: 125x83x14 mm


optimum-start_ico_web

OPTIMUM START function:

This function enables intelligent control of the heating device, increases efficiency and provides better thermal comfort. The room regulator, learning by itself, will select the optimal boiler activation time in order to achieve thermal comfort, so that the room is heated to the set temperature for a pre-set time.



grzanie-chlodzenie_ico_web

Heating / Cooling mode:

This function allows you to control devices used for heating, such as cooling devices or air conditioners. In order to configure the operation, select the function in the menu that you want the regulator to perform (heating or cooling).



czujnik-temp-pod_ico_web

FLOOR TEMPERATURE sensor:

When using an additional floor temperature sensor, the room regulator will control the room temperature taking into account the floor temperature (set the minimum and maximum floor temperature). Among other things, we can prevent the floor from cooling down in well-sunny rooms.
