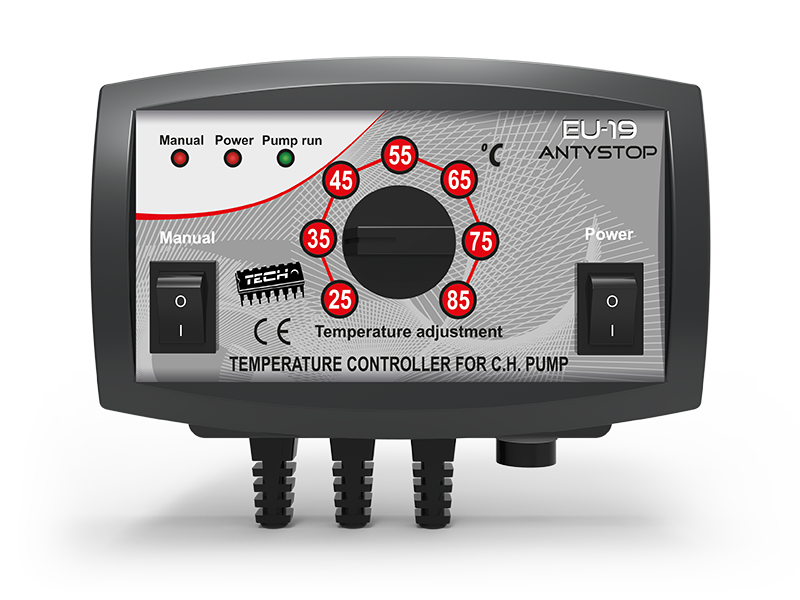

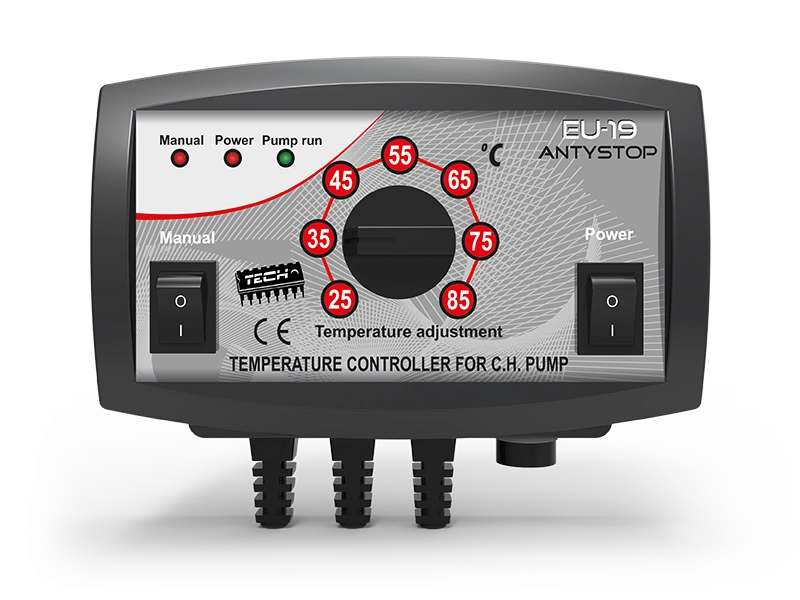

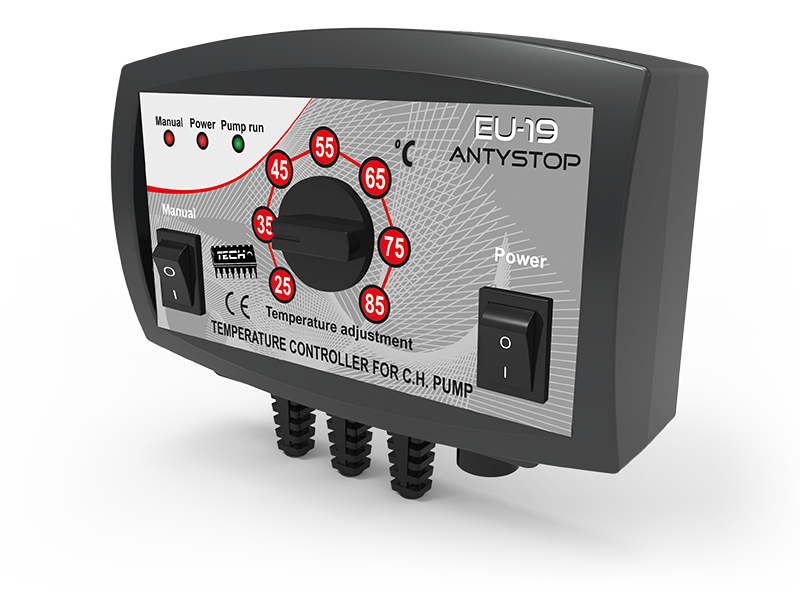

EU-19

The EU-19 anti-stop regulator is intended to control the CH water circulation pump. The potentiometer is used to adjust the set temperature. The regulator’s task is to: switch on the pump if the temperature reaches the set value, and to switch it off if the furnace cools down 2°C below the set value.

Product description



Controllers for CH Pumps with an Anti-Stop Function

Principle of Operation

The EU-19 regulators anti-stop function is intended to control the CH water circulation pump. The potentiometer is used to adjust the set temperature. The regulator’s task is to: switch on the pump if the temperature reaches the set value, and to switch it off if the furnace cools down 2°C below the set value. Such an operation mode prevents the unnecessary operation of the pump, which makes it possible to save electricity and extends the pump’s life as well as improves its reliability. The EU-19 controller also has an additional anti-stop function which prevents pump stagnation beyond the season (the pump switches on approx. every 10 days for 1 minute).

Functions Performed by the Controller:

  • CH Pump Control

  • Anti-Stop Function

Controller’s Equipment:

  • CH Temperature Sensor

  • Potentiometer to adjust the set temperature

Product parameters

Specification Unit
Power supply V 230V/50Hz +/-10%
Maximum power consumption W 2
Ambient temperature °C 5÷50
Max. pumps output load A 1
CH temperature adjustment range °C 25÷85
Hysteresis °C 2
Measurement accuracy °C 1
Sensor thermal resistance °C -25÷90
Fuse A 1,6
Sensor cable length m 1,5
Temperature measurement range °C 0÷85
